STRATASEAL HR Hot Rubberized Asphalt Waterproofing

Fast. Easy. Versatile.

Combining decades of experience with advanced technology, STRATASEAL HR is the solution for exceptional and easy-to-install waterproofing.



It’s a proven success.

StrataSealHR

Hassle-free installation plus outstanding waterproofing performance

For new and restoration construction, STRATASEAL HR combines reinforcing fabric with layers of hot-applied rubberized asphalt to form a tough, continuous, seamless membrane to provide a reliable water barrier for horizontal and vertical concrete surfaces such as:

  • Split-slab plaza decks
  • Pavered plaza decks
  • Parking garages
  • Bridge decks
  • Foundation walls
  • Tunnels
  • Planters
  • Earth covered structures
  • Roof decks using a protected membrane system
  • Green roofs

STRATASEAL HR contours readily to the substrate. It completely fills around penetrations and adheres tenaciously to virtually any appropriate surface.



Easy installation saves you time—and money

STRATASEAL HR can be installed in temperatures as low as 0°F. Eliminating such weather delays and site-specific installation variabilities that can cost time, its fast set-up speeds installation so your waterproofing project proceeds on schedule—without costly delays.



How it does it

STRATASEAL HR is a single component, 100% solid, hot-applied rubberized asphalt membrane. It’s formed by applying reinforcing fabric over a 2.3 mm (90-mil)-thick base layer of rubberized asphalt and then applying a second 3.2 mm (125 mil) thick layer of rubberized asphalt over the reinforcing fabric for a total system thickness of 5.5 mm (215 mils). What’s more, in the unlikely event of damage to the membrane, STRATASEAL HR’s exceptional adhesion limits lateral water migration to the damaged area.

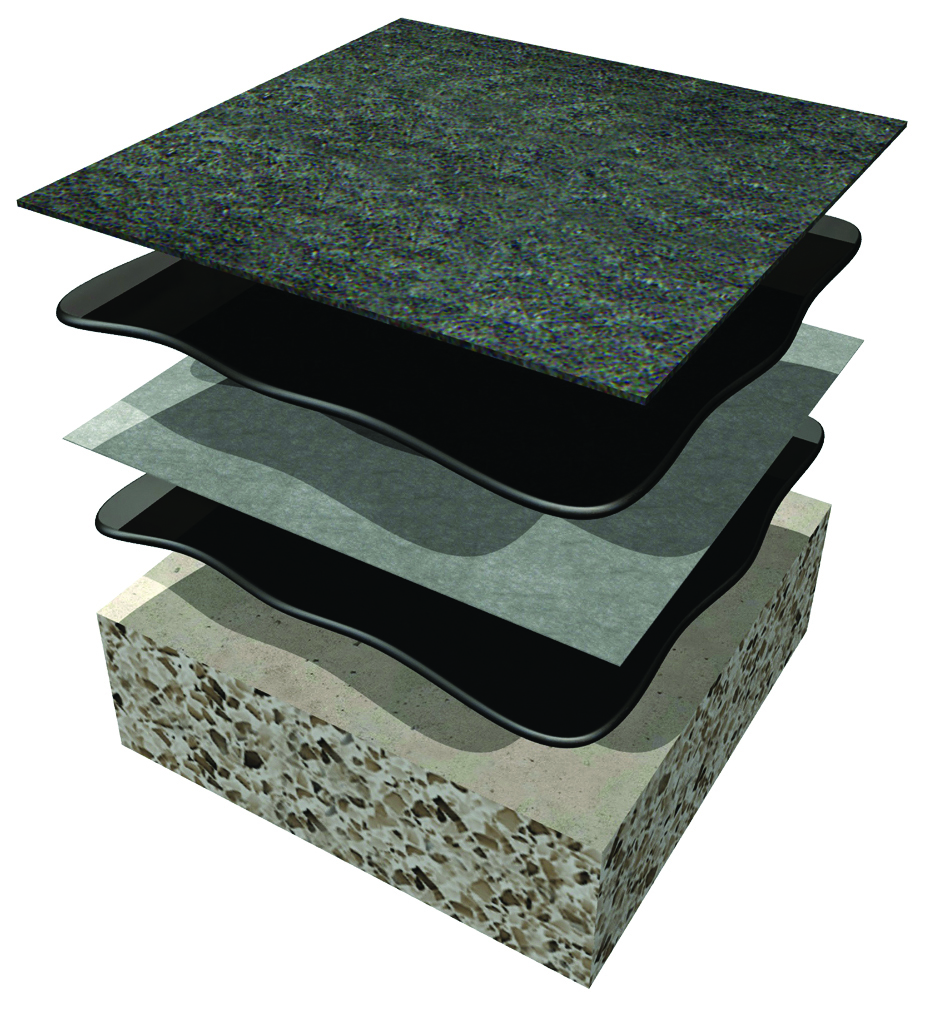

Stataseal-HR Membrane Illustration

CETCO - Pioneer and leader in waterproofing

CETCO is the leader and pioneer in cutting-edge waterproofing membranes. Around the globe, our innovative teams of clay mineralogists, chemists, and polymer scientists transform ordinary minerals into extraordinary technology to solve day-to-day problems worldwide.



    Featured Products

    cetco-aquadrain-accessory

    AQUADRAIN®
    Foundation drainage composite consisting of a molded profile core and a filter fabric. System includes drainage and base drain collection.

    Learn more

    CETGUARD_blank

    CETGUARD
    Polymethyl methacrylate (PMMA) liquid resin for flashing and detailing.
    Learn more

    200x147_GS-404

    GS-404
    12.5 ft wide rolls of a non-woven geotextile filter fabric and ballast later over insulation course.
    Learn more



    no-image

    N-Flash
    60-mils thick uncured, nonstaining neoprene flashing. Also available: Bonding Adhesive, lap splicing cement and lap sealant N-Flash is available in widths of 6", 12", and 36"; all 100 ft in length.
    Learn more



    RAP 200

    RAP 200
    90-mils reinforced rubberized asphalt protection sheet with both sides sanded.
    Learn more

    STRATABOND 100 REINFORCEMENT FABRIC
    1.5-oz/sq-yd spun bonded polyester high-strength reinforcing fabric in 48" width.
    Learn more



    cetco-strataprime-sb
    STRATAPRIME SB
    Solvent-based asphalt emulsion primer to condition substrate for membrane and flashings.
    Learn more

    no-image
    XPS60
    60 psi rigid, extruded insulation board. Board size: 0.6 m (2 ft) x 2.4 m (8 ft). Thicknesses: 2" and 3".



    XPS100
    100 psi rigid, extruded insulation board. Board size: 0.6 m (2 ft) x 2.4 m (8 ft). Thickness: 2".

    Learn more
